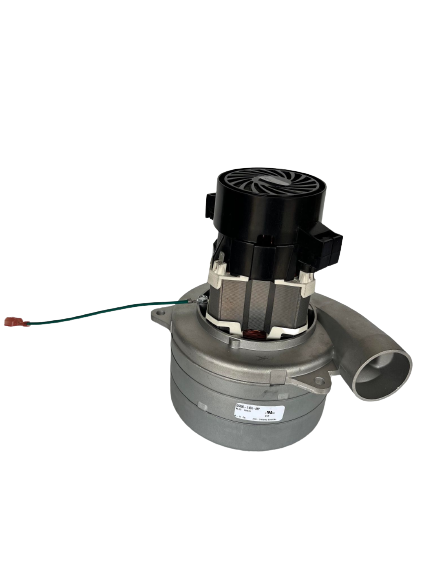

3 Stage Vacuum Motor 240v

£135.00 GBP
£135.00 GBP

Description

  • Voltage: 240 volts
  • Number of stages: 3
  • Airflow: 99 CFM at 2" Orifice
  • Sealed Vacuum: 126 inches of water
  • Maximum Air Watts: 429
  • Maximum Amps: 12.2
  • Overall height: 8.03 inches
  • Motor Type: Bypass Tangential (BPT)

NOTE: Bypass Tangential (BPT). Same as Peripheral bypass with two airflow systems except the working filtered air exhaust exits through the tangential horn integral to the 3 lugged motor mounting bracket.
