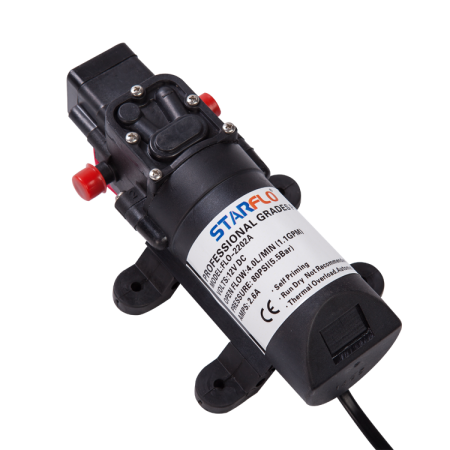

G3 12V Pump 80PSI with Pressure Switch

This compact automatic demand pump offers durability and dependability making it ideal for low volume, intermittent duty applications. The FLO-2202A  Pump self-primes up to 2.5 vertical feet while delivering 1.1GPM at open flow. 2.6A 12 volt low power consumption motor, equipped with thermal protection and long life pressure switch rated to 80PSI, provides high pump performance and reliability.

FEATURES

• Single-Fixture 12 VDC
• Self-Priming
• Run Dry Capability
• 80 PSI Shut-Off Pressure
• Long Life Pressure Switch
• Small size,Light weight and Stable performance.
• Special valve for liquid input and output;
• Antivibration pad,easy installation.
• Self-priming,Automatic Pressure Switch.
• Automatic Pressure Protection.
• Low Noise,with excellent resistant to chemical corrosion.

SPECIFICATION

Introducing the 2 chamber positive displacement diaphragm pump - a self-priming powerhouse that can operate even when dry. Experience a maximum recommended temperature of 110°F (43°C) and a priming capability of 4 feet (1.2 m) suction lift. With a maximum pressure of 80PSI (5.5 bar), our pump features a demand switch with a shut-off and turn-on at 80 ± 5 PSI (5.5 ± 0.3 bar). Conveniently designed with 3/8" hose barb inlet/outlet ports and weighing in at just 1.25 lbs (.57 kg), this pump is a versatile and lightweight addition to your equipment. Enjoy the benefits of 18 AWG motor leads, measuring 4.5" in length and equipped with a 2-pin connector, for easy installation. Our pump also boasts an intermittent duty cycle and is made with quality materials such as Santoprene diaphragms,
